High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction

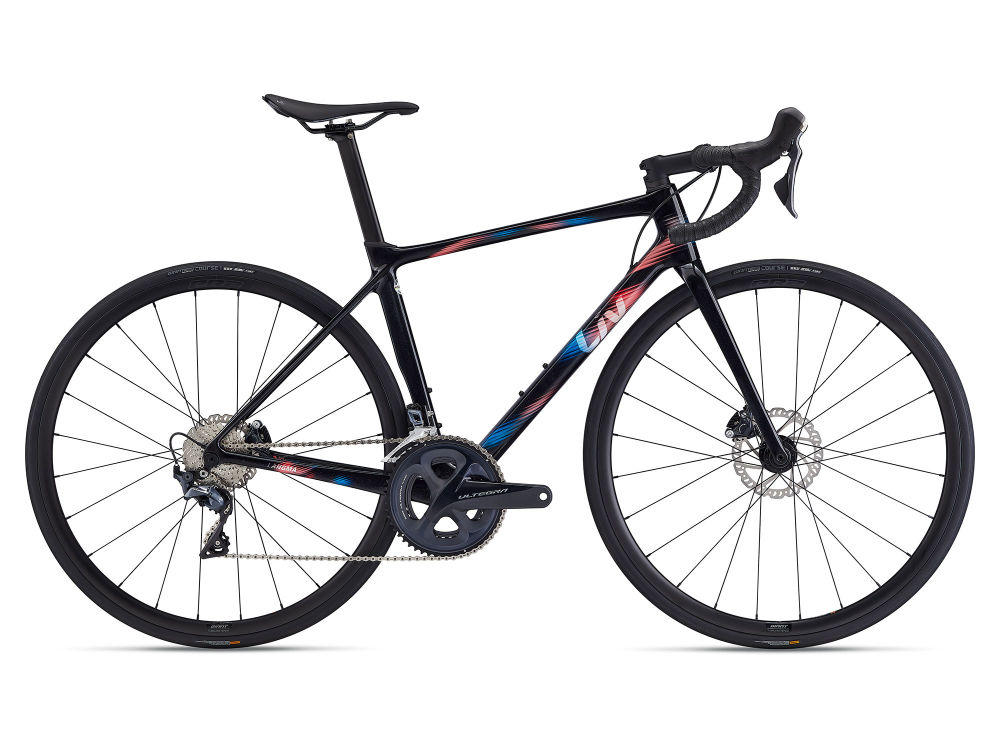

클라이밍을 오르거나 내리막길을 따라 질주할 때, 그리고 새로운 PR에 도전할 때, Langma Advanced Disc는 달릴 준비가 되어 있습니다. 새롭게 설계된 경량 에어로 프레임, 최신 GIANT SLR 36Disc 휠시스템(일부 모델), 일체형 디스크 브레이크, 커스텀 Liv 안장과 핸들바는 최적의 핏과 강력한 퍼포먼스를 선보입니다.
Key Performance Factors
빠른 가속 성능
Langma Advanced의 핵심인 초경량 Advanced 등급 카본 복합소재 프레임셋은 강력한 무게 대비 강성 비율을 갖추어 폭발적인 가속 성능을 선보입니다. 또한 최신 Truncated Ellipse Tubing은 공기 저항을 낮추고 스프린트 효율은 높입니다.
뛰어난 핸들링
일체형 플랫 마운트 디스크 브레이크는 빠른 속도로 코너를 지나고, 다양한 날씨 속에서도 안정적으로 나아갑니다. 또한 Langma는 32mm 타이어까지 호환할 수 있어 앞선 라이딩 여정에 따라 원하는 사이즈를 세팅할 수 있습니다.
적은 진동
튜브리스 GIANT SLR 36 Disc 휠시스템(일부 모델)은 공기 저항을 줄이며, Variant 카본 복합소재 싯포스트는 최상의 컴플라이언스를 제공하여 거친 도로 위도 부드럽게 주행하는 반응성이 뛰어난 라이딩 퀄리티를 선보입니다
Advanced Composite
Truncated Ellipse Tubing
New strategically engineered airfoil sections in the frame and fork, developed through Computational Fluid Dynamics (CFD) and wind-tunnel testing, reduce wind drag at a wider range of yaw angles compared to traditional “teardrop”-shaped tubes
Variant Seatpost
This proprietary seatpost design offers the perfect balance of light weight, superior ride quality, aerodynamics and easy saddle installation and adjustment
Symmetric Aero Composite Fork
Constructed with fully continuous pieces of cut carbon and a higher percentage of Advanced SL-Grade Composite material than any other model, this new fork enhances steering control, precision, and stiffness. Plus, it now features disc-brake integration and increased clearance for tires up to 32mm
Liv Contact Handlebar
Our all-new aluminum handlebar features an aerodynamic design, ergonomic grip and optimized drop and reach that’s customized for women’s measurements
OverDrive
Liv’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1-1/4” lower and 1-1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness
MegaDrive
A massive rectangular downtube forms the link between the OverDrive 2 headtube area and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while optimizing aerodynamic flow over a standard water bottle
PowerCore
An oversized bottom-bracket/ chainstay area features a fully integrated, 86-millimeter-wide bottom-bracket design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside
Tubeless Giant Wheels
All Langma Advanced Disc models are set up tubeless, providing greater efficiency, comfort and control
Disc Brake Integration
The frame and fork are engineered for flat-mount disc brakes to provide powerful, consistent braking performance in all conditions
나열된 모든 사양은 사전 통보없이 변경 될 수 있습니다.
